Matplotlib is a powerful and versatile plotting library in Python, widely used for data visualization in scientific computing, machine learning, and business analytics. If you want to become proficient in Matplotlib, this guide will take you through the fundamental and advanced concepts to help you create stunning and insightful visualizations.
1. Introduction to Matplotlib
Matplotlib is a plotting library that provides an object-oriented API for embedding plots into applications. It is built on NumPy and integrates well with pandas, SciPy, and other scientific libraries.
You can then import it using:
import matplotlib.pyplot as plt
import numpy as np
2. Basic Plots in Matplotlib
Matplotlib offers various types of plots. Below are some of the most commonly used ones:

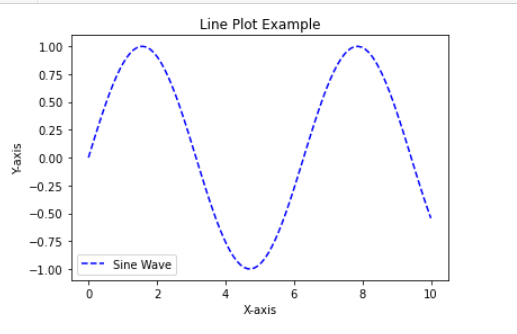

Line Plot
x = np.linspace(0, 10, 100)
y = np.sin(x)
plt.plot(x, y, label=’Sine Wave’, color=’blue’, linestyle=’–‘)
plt.xlabel(‘X-axis’)
plt.ylabel(‘Y-axis’)
plt.title(‘Line Plot Example’)
plt.legend()
plt.show()

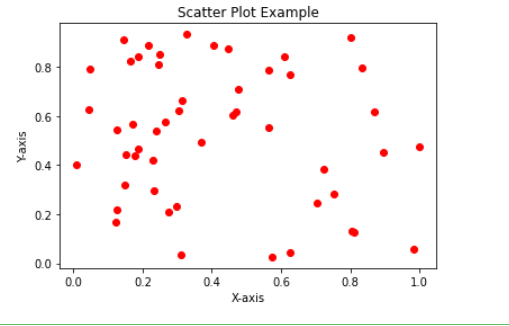

Scatter Plot
x = np.random.rand(50)
y = np.random.rand(50)
plt.scatter(x, y, color=’red’, marker=’o’)
plt.xlabel(‘X-axis’)
plt.ylabel(‘Y-axis’)
plt.title(‘Scatter Plot Example’)
plt.show()

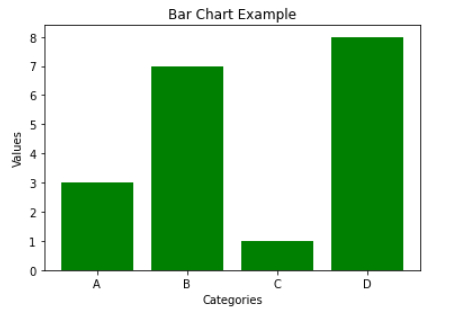

Bar Chart
categories = [‘A’, ‘B’, ‘C’, ‘D’]
values = [3, 7, 1, 8]
plt.bar(categories, values, color=’green’)
plt.xlabel(‘Categories’)
plt.ylabel(‘Values’)
plt.title(‘Bar Chart Example’)
plt.show()

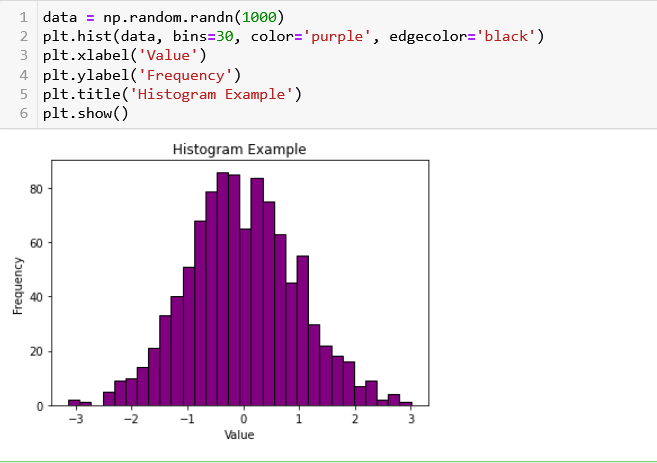

Histogram
3. Customizing Plots
Matplotlib allows extensive customization of plots to make them visually appealing.

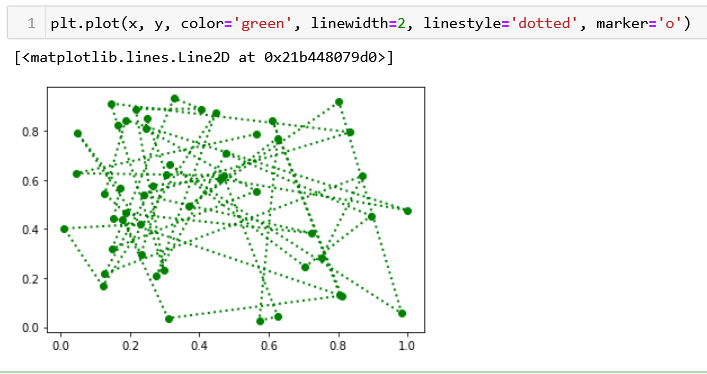

Modifying Line Styles and Colors

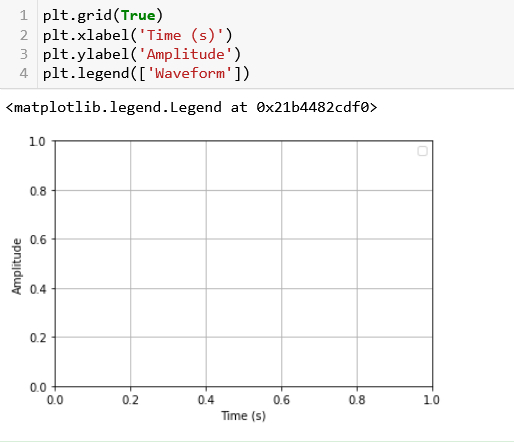

Adding Grid, Labels, and Legends

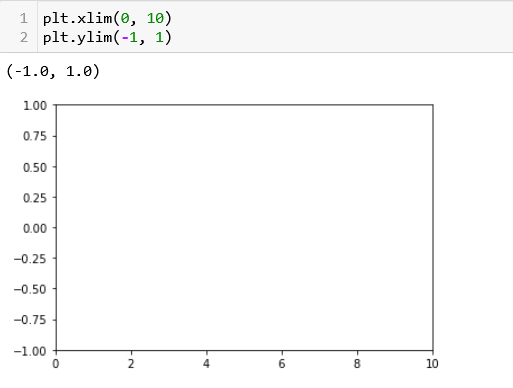

Adjusting Axis Limits

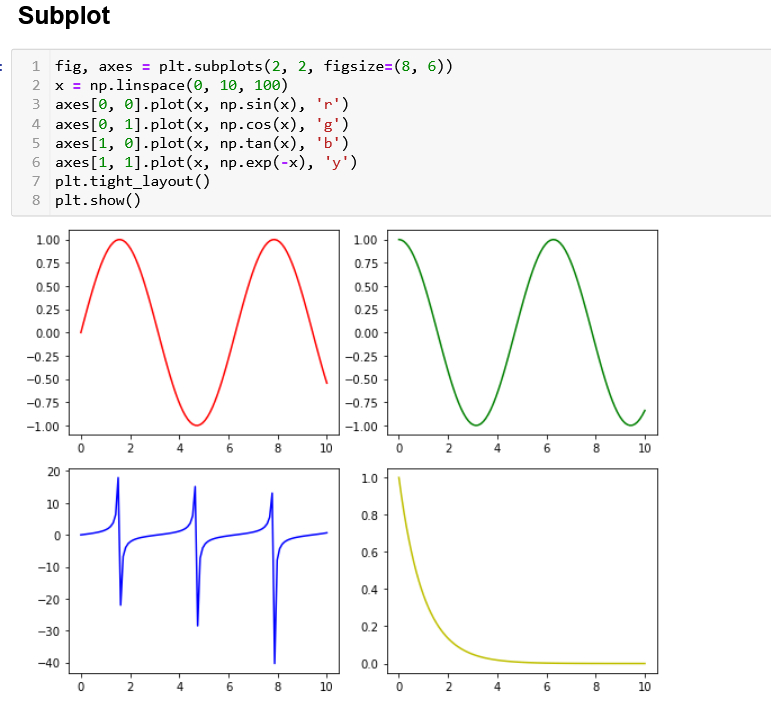

4. Multiple Plots and Subplots

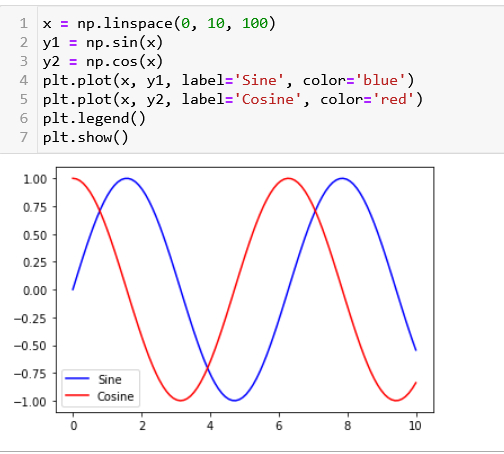

Multiple Plots in One Figure
5. 3D Plotting with Matplotlib
Matplotlib supports 3D plotting through the mpl_toolkits.mplot3d module.

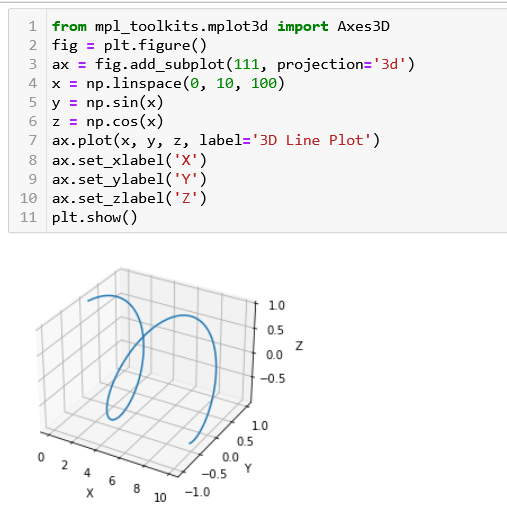

3D Line Plot
6. Animations and Interactive Plots
Matplotlib also supports animations using FuncAnimation and interactive plots with widgets.

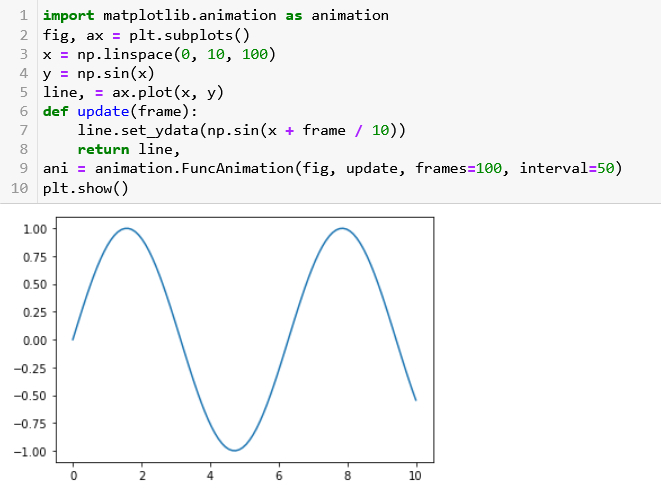

Basic Animation
7. Saving Figures
You can save your plots in various formats.
plt.savefig(‘plot.png’, dpi=300, bbox_inches=’tight’
Conclusion
Matplotlib is a must-have tool for anyone dealing with data visualization in Python. From basic plots to advanced customizations, mastering Matplotlib enhances your ability to represent data effectively. Experiment with different features and explore the documentation to take your skills to the next level!
